AGFRC High Torque 19KG Programmable Low Profile Brushless Digital Servo A50BHL

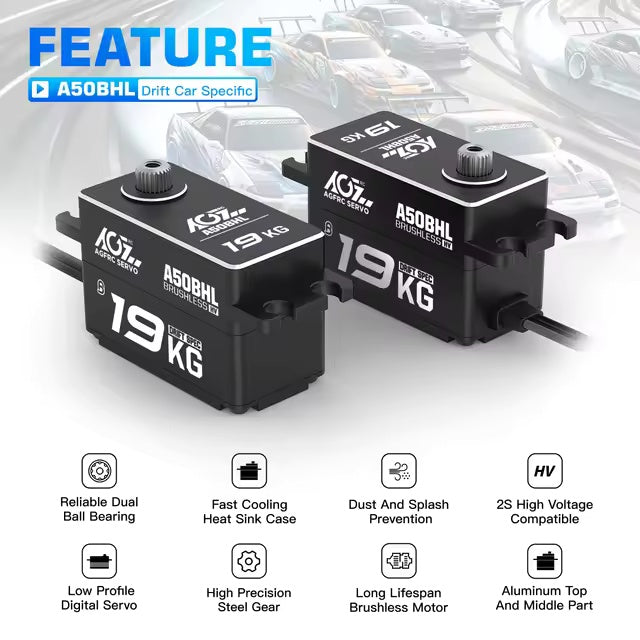

Feature

High Performance Low Profile Digital Servo

High Precision Steel Gear

High Quality Brushless Motor

High Voltage Compatible

Programmable Digital Circuit

Aluminum Top And Middle Part

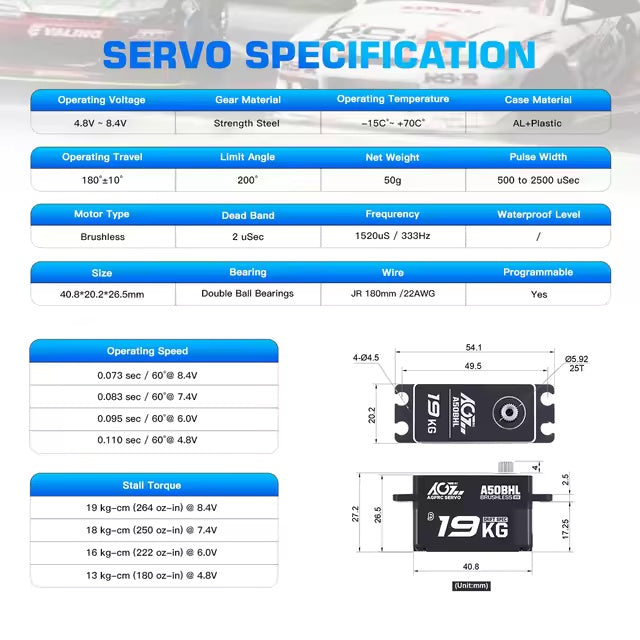

Specification

Item Name: A50BHL

Operating Voltage: 4.8-8.4V

Operating speed: 0.095sec/60° @ 6.0V

Operating speed: 0.083sec/60° @ 7.4V

Operating speed: 0.073sec/60° @ 8.4V

Stall Torque: 16 kg-cm (222 oz-in) @ 6.0V

Stall Torque: 18 kg-cm (250 oz-in) @ 7.4V

Stall Torque: 19 kg-cm (264 oz-in) @ 8.4V

Gear: Steel

Motor: BLS

Size: 40.8*20.2*26.5mm (1.60 x 0.79 x 1.04 in)

Weight: 51g

Connector Wire: JR 180 mm
